Stand-Alone Machines

Machining centers - The All-rounders for multifunctional complete Machining in a single setup

Today, multifunctional CNC machining centers are a cornerstone for the complete machining of complex workpieces that require a variety of technologies, high accuracies, and flexible process design. They form a focal point In the machine portfolio of the NSH Group. We combine almost all known exciting processes such as turning, milling, (deep hole) drilling, gear cutting, or even grinding operations in our centers, and can also integrate a wide range of in-process measuring methods as well as rolling processes. Due to the modular design of our centers and variable additional options, we can adapt and specialize the machines individually to the requirements of our customers.

Horizontal Turn-Mill Machining Centers

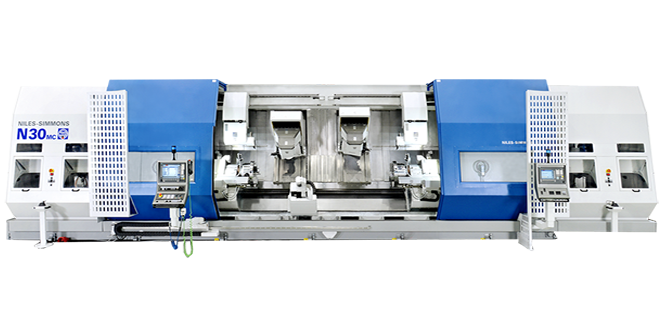

Here you can see the machining center N30MC

Our horizontal, multifunctional CNC turn-mill machining centers in inclined bed design enable an economical, flexible and permanently accurate complete machining of shaft- and disk-shaped components of various materials and sizes. Due to the modular design of the machines and different sizes,…

Our horizontal, multifunctional CNC turn-mill machining centers in inclined bed design enable an economical, flexible and permanently accurate complete machining of shaft- and disk-shaped components of various materials and sizes. Due to the modular design of the machines and different sizes, components with a swing diameter between max. 650mm to max. 1500mm as well as with a turning length between max. 1000mm and 7500mm can be machined accurately and reliably. The machining spectrum of the centers is characterized by extensive, optional process integrations and can thus map processes such as turning, milling, (deep hole) drilling, gear cutting, grinding, rolling, and extensive in-process measuring tasks in one clamping. Thanks to the modular machine design, the machine can be customized to the respective machining task.

Here you can see the machining center N30MC

NILES-SIMMONS

Applications:

  • Machine Building
  • Tool & Die
  • Automotive
  • Aviation



to the industries

Here you can see a cover for the flyer of a MC in EN

PDF I 2,48 MB

Brochure

Horizontal Turn-Mill Machining Centers MC-Series

DOWNLOAD

For more information about NILES-SIMMONS horizontal turning-milling machining centers, click here.

LEARN MORE

Horizontal End Machining Centers

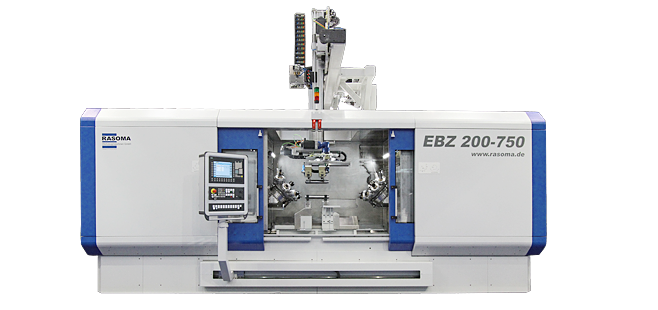

Here you can see a RASOMA horizontal finishing center

Our horizontal CNC end machining centers in flat bed design allow efficient end machining of very small to extremely large shaft parts. Due to the modular design of the machines and different sizes, a wide variety of components with a turning length between 150mm to 20,000mm as well as a workpiece…

Our horizontal CNC end machining centers in flat bed design allow efficient end machining of very small to extremely large shaft parts. Due to the modular design of the machines and different sizes, a wide variety of components with a turning length between 150mm to 20,000mm as well as a workpiece diameter between 60 mm and 250mm as well as special components such as CNG gas cylinder necks can be machined simultaneously, end-side. The series is characterized by high flexibility in the available options with regard to tool carriers and holders, clamping devices, automation and loading, as well as by optimized main and auxiliary times.

Here you can see a RASOMA horizontal finishing center

RASOMA

Applications:

  • Machine Building
  • Railway
  • Automotive
  • Tool & Die



to the industries

Here you can see a download cover for EBZ in EN

PDF I 0,55 MB

Brochure

Horizontal End Machining Centers EBZ-Baureihe

DOWNLOAD

For more information on RASOMA horizontal end machining centers, click here.

LEARN MORE

Vertical Turning Centers

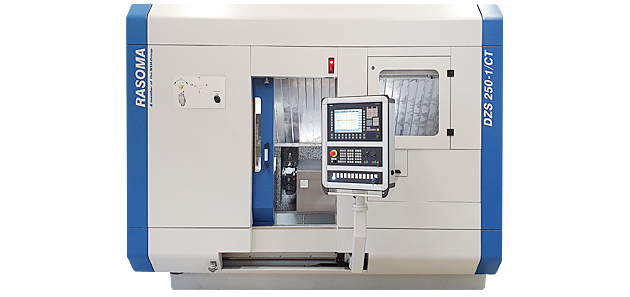

Here you can see a RASOMA vertical turning center

Our compact vertical CNC turning centers stand for highest flexibility in the turning of especially disk-shaped components with minimum space requirements. Workpieces with a max. swing diameter between 280mm and 540mm can be machined with high stability and shortest non-productive times. Our turning…

Our compact vertical CNC turning centers stand for highest flexibility in the turning of especially disk-shaped components with minimum space requirements. Workpieces with a max. swing diameter between 280mm and 540mm can be machined with high stability and shortest non-productive times. Our turning centers can be equipped with one or more spindles and can be configured according to customer requirements. In this way, additional machining units and processes can also be integrated and in some cases operated in parallel. This enables maximum flexibility and cost-effectiveness in machining. In addition, our vertical turning centers can be automated and interlinked precisely to meet your requirements.

Here you can see a RASOMA vertical turning center

RASOMA

Appications:

  • Machine Building
  • Railway
  • Tool & Die
  • Automotive
  • Aviation



to the industry

PDF I 0,93 MB

Brochure

Vertical Turning Centers DS & DZS-Series

DOWNLOAD

For more information on RASOMA vertical turning centers, click here.

LEARN MORE

Vertical Machining Centers for special Applications

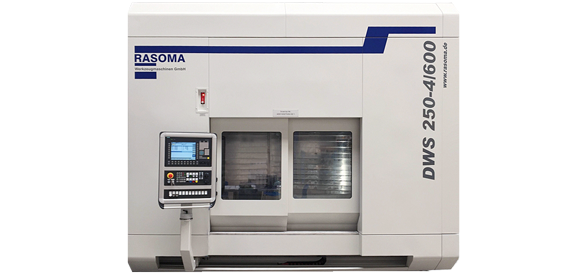

Here you can see a RASOMA Vertical Machining Center for special applications

Our compact vertical CNC machining centers DSP, FZS, and DWS are designed and optimized for specific special processes. Their high level of specialization makes them leaders in their respective fields of application. Machining operations such as the highly efficient perforation of brake disks, the…

Our compact vertical CNC machining centers DSP, FZS, and DWS are designed and optimized for specific special processes. Their high level of specialization makes them leaders in their respective fields of application. Machining operations such as the highly efficient perforation of brake disks, the insertion of oil and weight relief holes as well as the 4-axle machining of compact shaft parts up to 600mm in length can be realized highly economically with these centers.

Here you can see a RASOMA vertical turning center

RASOMA

Appications:

  • Machine Building
  • Automotive



to the industries

PDF I 1,42 MB

Brochure

Vertical Machining Centers for special Applications DSP, FZS and DWS-Series

DOWNLOAD

Click here for more information on RASOMA vertical machining centers for special applications.

LEARN MORE
