Milling Machines - the First Choice for complex Contours, Geometries & Shapes

Efficient CNC milling machines are the first choice when it comes to the machining of specific component contours or multi-dimensional geometries. They are among the core competencies of the NSH Group. We combine a variety of different milling processes to create a head start for your cost- and resource-efficient production. In addition to pure milling machines and centers, we can also integrate the processes into our universal machining and production centers, and combine them with a wide range of other processes.

Horizontal Milling Machines

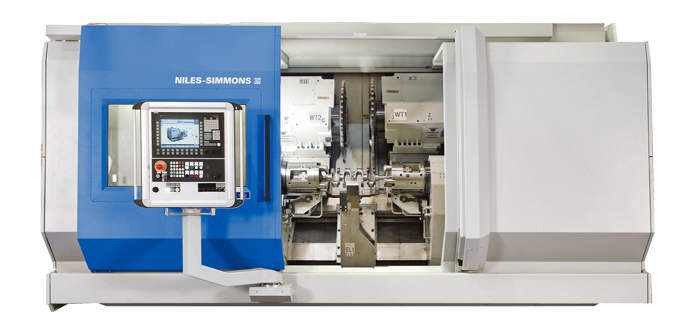

Here you can see a NSI N20CM horizontal milling center

Our horizontal CNC milling machines in inclined bed design are based on the machine concept of our horizontal lathes and were originally designed as specialized machines especially for the automotive industry. They guarantee economical and accurate milling of crankshafts, camshafts or eccentric…

Our horizontal CNC milling machines in inclined bed design are based on the machine concept of our horizontal lathes and were originally designed as specialized machines especially for the automotive industry. They guarantee economical and accurate milling of crankshafts, camshafts or eccentric shafts in particular, especially the main and pin bearings, as well as cam and eccentric molds. Due to two different sizes, both compact components with a maximum- swing diameter up to 650mm and workpiece lengths up to 850mm and large workpieces with a maximum swing diameter of 780nm and workpiece lengths up to 2400mm can be machined accurately and reliably. Our milling machines allow both roughing and finish milling, and are characterized by their high cutting performance and minimum non-productive times as well as excellent automation, process reliability, and high accuracy. In addition, our in-house technology interface "Cam & Crank Shaft Milling aUI" offers the possibility to create machining programs automatically without extensive prior knowledge in NC programming.

Here you can see a NSI N20CM horizontal milling center

NILES-SIMMONS

Applications:

  • Automotive
  • Machine Building



TO THE INDUSTRIES

PDF I 6,24 MB

Brochure

Horizontal Milling Machines CM-Series

DOWNLOAD

For more information about NILES-SIMMONS horizontal milling machines click here.

LEARN MORE

Universal 5-Axle Milling Centers

Here you can see a NSI NMill 1900 vertical milling center

Our universal 5-axle milling centers guarantee high-performance and high-precision milling of complex components with a wide range of geometries, materials, and sizes. The compact 5-axle milling centers have a maximum interference circle of 1900 mm and a maximum height of 1100 mm, as well as a…

Our universal 5-axle milling centers guarantee high-performance and high-precision milling of complex components with a wide range of geometries, materials, and sizes. The compact 5-axle milling centers have a maximum interference circle of 1900 mm and a maximum height of 1100 mm, as well as a maximum workpiece weight of 7 tons. This allows workpieces to be machined with precision fit, and process reliability, and also to be rough and finish machined in a single setup. The machines are characterized by high dynamics for heavy components due to low moving masses. Another advantage of our milling centers is the low space requirement in relation to the very large working area. At our location in Chemnitz, we produce both the NSH Group's Nmill-Series milling centers and the MILL E series machines for the Swiss mechanical engineering company Georg Fischer Machining Solutions.

Here you can see a vertical milling center NSI Nmill-1900

NILES-SIMMONS

Applications:

  • Tool & Die
  • Aviation
  • Automotive
  • Machine Building



to the industries

PDF I 2,33 MB

Brochure

Universal 5-Axle Milling Centers Nmill-Series

DOWNLOAD

For more information on the NILES-SIMMONS brand of universal 5-axle milling centers, click here.

LEARN MORE

Universal 5-Axle Milling Centers With Turning Function

Here you can see a NSI NMill 1400T vertical milling center

Our universal 5-axle milling centers with turning function guarantee high-performance and high-precision turn-mil machining of complex components with a wide range of geometries, materials, and sizes. The compact 5-axle milling-turning centers have a maximum interference circle of 1900 mm, a maximum…

Our universal 5-axle milling centers with turning function guarantee high-performance and high-precision turn-mil machining of complex components with a wide range of geometries, materials, and sizes. The compact 5-axle milling-turning centers have a maximum interference circle of 1900 mm, a maximum table diameter of 1500 mm, a height of 1100 mm, and can machine parts with a maximum workpiece weight of 4 tons. This allows workpieces to be both milled and turned in a single setup with precision fit and process reliability, in each case using both roughing and finishing processes. The machines are characterized by high dynamics for heavy components due to low moving masses. Another advantage of our milling centers is the low space requirement in relation to the very large working area. At our location in Chemnitz, we produce both the NSH Group's Nmill-Series milling centers and the MILL E series machines for the Swiss mechanical engineering company Georg Fischer Machining Solutions

Here you can see a NSI NMill 1400T vertical milling center

NILES-SIMMONS

Applications:

  • Tool & Die
  • Automotive
  • Aviation
  • Machine Building



TO THE INDUSTRIES

PDF I 2,33 MB

Brochure

Universal 5-Axle Milling Centers With Turning Function N-MILL T-Serie

 DOWNLADEN

For more information about the universal 5-axle milling centers with turning function of the NILES-SIMMONS brand, click here.

Learn More
