Grinding Machines - When every µ counts

Efficient CNC grinding machines are essential for the fine and finish machining of many components in modern industries. They are among the core competencies of the NSH Group. We combine almost all known grinding processes, such as internal and external cylindrical grinding or form and thread grinding, to perfection and to create a advance for your cost- and resource-efficient production. Depending on the production task, our modern grinding machines can be used for both rough machining for particularly high material removal and high-precision processes for maximum surface quality.

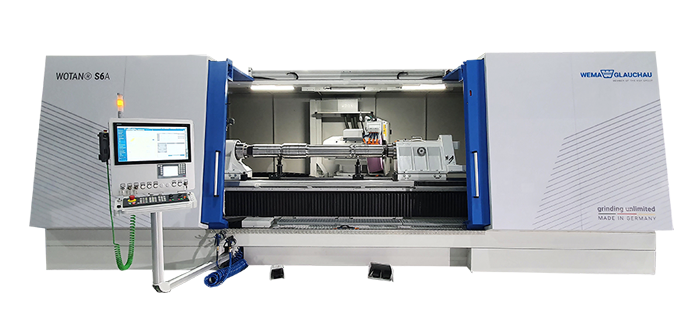

External Grinding Machines

Our external cylindrical grinding machines guarantee maximum precision to the µm. The machines are suitable for grinding rotationally symmetrical parts of various materials and sizes up to a workpiece weight of 5000 kg. Due to our three different sizes, more compact components with a maximum…

Our external cylindrical grinding machines guarantee maximum precision to the µm. The machines are suitable for grinding rotationally symmetrical parts of various materials and sizes up to a workpiece weight of 5000 kg. Due to our three different sizes, more compact components with a maximum rotational diameter of up to 200mm and workpiece lengths of up to 600mm, as well as very large and heavy components with a maximum rotational diameter of 600mm and workpiece lengths of up to 5000mm can be machined with precision and process reliability. Common workpieces for this series are railroad axles, rollers, tubes and shafts. Customized configurations for your specific grinding task and an optimal production flow are always the top priority. A wide range of expansion options allows maximum precision in one setup and perfect integration into automated production processes. In addition, our innovative WOP-Touch™ user interface ensures intuitive operation directly at the machine or remotely.

WEMA-GLAUCHAU

Applications:

  • Machine Building
  • Railway
  • Automotive
  • Aviation



TO THE INDUSTRIES

PDF I 3,27 MB

Download Brochure

External Grinding Machines SXA-Series

DOWNLOAD BROCHURE

You will find more information about WEMA-GLAUCHAU external grinding machines here.

LEARN MORE

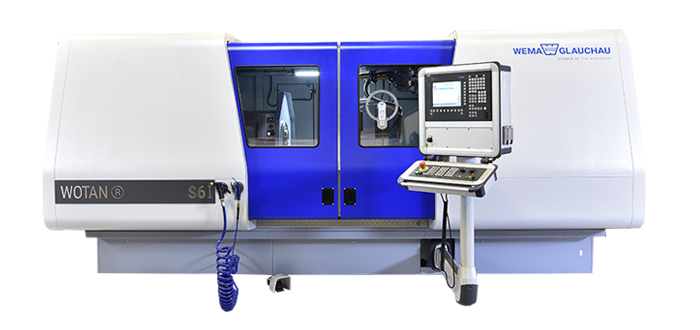

Internal Grinding Machines

Our internal cylindrical grinding machines guarantee precise grinding processing for both simple and complex internal grinding tasks - quickly and efficiently. The machines are well suitable for the machining of chuck and shaft shaped parts of various materials and sizes. Due to our four different…

Our internal cylindrical grinding machines guarantee precise grinding processing for both simple and complex internal grinding tasks - quickly and efficiently. The machines are well suitable for the machining of chuck and shaft shaped parts of various materials and sizes. Due to our four different sizes, more compact components with a maximum swing diameter of up to 200mm and workpiece lengths of up to 300mm, as well as very large and heavy components with a maximum swing diameter of up to 1200mm and workpiece lengths of up to 1800mm can be machined with precision and process reliability. Common workpieces for this series are cylinders, cones, polygons or eccentrics. Our powerful drives ensure fast availability and additional working and peripheral modules reduce cost-intensive non-productive times. The result is short cycle times, higher throughput and satisfied customers. In addition, our innovative WOP-Touch™ operator interface ensures intuitive operation directly at the machine or remotely.

WEMA-GLAUCHAU

Applications:

  • Machine Building
  • Automotive
  • Aviation



TO the Industries

PDF I 3,27 MB

Download Brochure

Internal Grinding Machines SXI-Series

DOWNLOAD BROCHURE

You will find more information about WEMA-GLAUCHAU internal grinding machines here..

LEARN MORE

Universal Grinding Machines

Our universal grinding machines guarantee 4-sided machining for complex grinding tasks of all common workpiece sizes. The machines are suitable for rotationally symmetrical, shaft-shaped parts as well as for chuck parts of various materials and sizes. Due to our two different sizes, more compact…

Our universal grinding machines guarantee 4-sided machining for complex grinding tasks of all common workpiece sizes. The machines are suitable for rotationally symmetrical, shaft-shaped parts as well as for chuck parts of various materials and sizes. Due to our two different sizes, more compact components with a maximum rotary diameter of up to 300mm and workpiece lengths of up to 400mm, as well as very large and heavy components with a maximum rotary diameter of 820mm and workpiece lengths of up to 3200mm can be machined with precision and process reliability. Common workpieces for this series are cylinders, cones, polygons, eccentrics and rotor shafts. The machines are equipped with variable external and internal grinding units and up to three swivel jaws. This allows for complete machining in just one set-up and generates decisive efficiency and precision advantages. Even the most complex, customized configurations can be mapped, thus guaranteeing an optimal production sequence. In this way, personnel costs can be lowered and production times reduced. In addition, our innovative WOP-Touch™ user interface ensures intuitive operation directly at the machine or remotely.

WEMA-GLAUCHAU

Applications:

  • Machine Building
  • Automotive
  • Aviation



TO the industries

PDF I 3,27 MB

Download Brochure

Universal Grinding Machines SXU-Series

DOWNLOAD ROCHURE

Further information about the universal grinding machines of the brand WEMA-GLAUCHAU you will find here.

LEARN MORE
